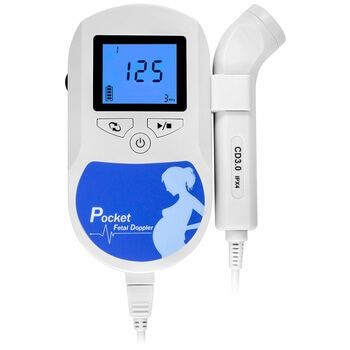

The Facelake FD-300B Fetal Doppler can meet routine examination requirements of obstetricians, midwives, pregnant women, and vascular ultrasounds. This baby heart monitor is a high-performance model with FHR monitoring and a backlit LCD. Three heart rate processing modes are available to select, including a real-time FHR display mode, averaged FHR display mode, and manual mode. The monitor outputs the digital audio signal through the built-in speaker or via the headphone jack. The audio signal is recognized by standard audio recording software, allowing users to share or save recordings to a computer using the optional recording cable.
The interchangeable probe options are lightweight and ergonomically shaped to fit comfortably in the hand of the user. The 3.0Mhz probe is more sensitive than the 2.0Mhz probe and can pick up a baby's heartbeat as early as 8-10 weeks gestation. The 3.0MHz is an early-term and general-purpose baby doppler probe that will work well through most full-term pregnancies. The 2.0MHz late-term/obese pregnancy probe accommodates depths of 10cm or more.
Package Includes
- Doppler body
- 3 Mhz probe
- Headphones
- 60 Gram ultrasound gel tube (good for over 50 tests)
- 2 AA batteries
- 1 year warranty
Features
- Powerful built-in speaker for listening to the heartbeat without headphones
- Easy to read LCD with on/off backlight
- Clear digital fetal heart rate display
- Uses 2 AA size batteries which are easy to find (2 new batteries are included)
- Auto-off feature & low battery consumption to ensures hours & hours of usage
- Battery icon which indicates how much battery is left
- Headphone jack for listening to the heartbeat or for linking the unit to a computer
- Weight only 180g with the batteries inserted
- Compact design with buttons designed to withstand repeated usage without wearing out or breaking
- Recording/Audio Cable is optional
Digital sound recording. You will be able to record those first sounds for life, record your unborn baby's heartbeat. It not only offers digital recording via a computer but also storage on cassette or CD.
If you are pregnant and want to hear the baby's heartbeat, please choose the 3Mhz or 2mhz probe. The 8Mhz probe is not for hearing the baby's heartbeatUnit features 3 easy to operate modes:
a heart icon is displayed when the heartbeat is detected and the real-time heart rate is displayed numerically.
a heart icon is displayed when the heartbeat is detected and it averages the heart rate for a more stable reading.
this mode allows the user to calculate an average heart rate over a specific period of time by manually pushing a button to start & stop the time.
Function:
FHR Detection: Speaker output/Earphone output LCD display, Five working modes: Real-time FHR Display mode, Averaged FHR Display mode, Manual mode, continuous operation time>=15 hours
Option:
*[Sono2] 2 MHz Obstetrical Probe
*[Sono3] 3 MHz Obstetrical Probe
*[Sono8] 8 MHz Obstetrical Probe
FDA & CE approved.
FDA 510k number: K082480
Device listing number: D072247
Health Canada Registration number: 94645
number: G1140350972028
This product is not a diagnostic instrument. It is not an approved device for the treatment or prevention of medical conditions. All activity that is monitored and viewed with the device should not be considered a medical conclusion. The use of the machine provides audio and heart rate value that is for non-medical purposes only. For questions regarding medical conditions, please consult with a medical health professional.
Extended Specifications
| Complies with: IEC 60601-1:1988＋A1:1991＋A2:1995 Classification |
| Anti-electroshock Type: Internally powered equipment |
| Anti-electroshock Degree: Type B applied part |
| Harmful Liquid Proof Degree (Main Unit): Ordinary equipment (sealed equipment without liquid proof) |
| Harmful Liquid Proof Degree (Probe): Prevent from water splashing, degree of protection, IPX4 |
| Degree of Safety in Presence of Flammable Gases: Equipment not suitable for use in presence of flammable gases |
| Anti-electroshock Degree: Type B applied part |
| Main Unit: Ordinary equipment (sealed equipment without liquid proof) |
| Probe: Prevent from water splashing, degree of protection: IPX4 |
| Degree of Safety in Presence of Flammable Gases: Equipment not suitable for use in presence of flammable gases |
| Working System: Continuous running equipment |
| EMC: Group I Class B |
| Suitable Using Range: Suitable for use after the 12th week of pregnancy |
| Size: 135mm (Length) 92mm (Width) 29mm (Height) |
| Weight: ~245g (including batteries) |
